# 07-29 Instrument Cluster Telltales and Warnings Inspection

Check that all warning lights on the instrument cluster.

  1. Turn the start key to the “ON” position and confirm all warning lamps are lit.

  2. Page 31 of the Operator’s manual – LionC Gen3.

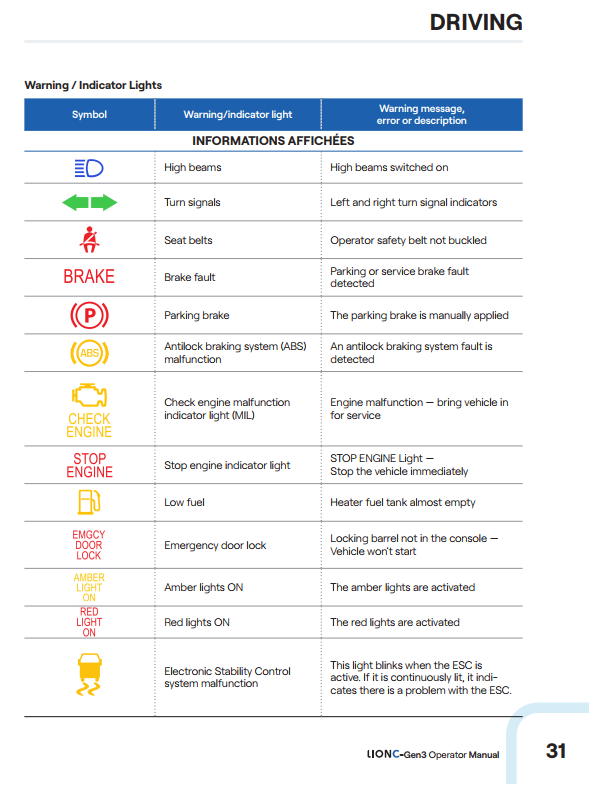

Figure 1 – LionC Gen3 warning lights.
Figure 1 – LionC Gen3 warning lights.

  1. Pages 54 to 56 of the LionC Gen4 Operator’s manual.

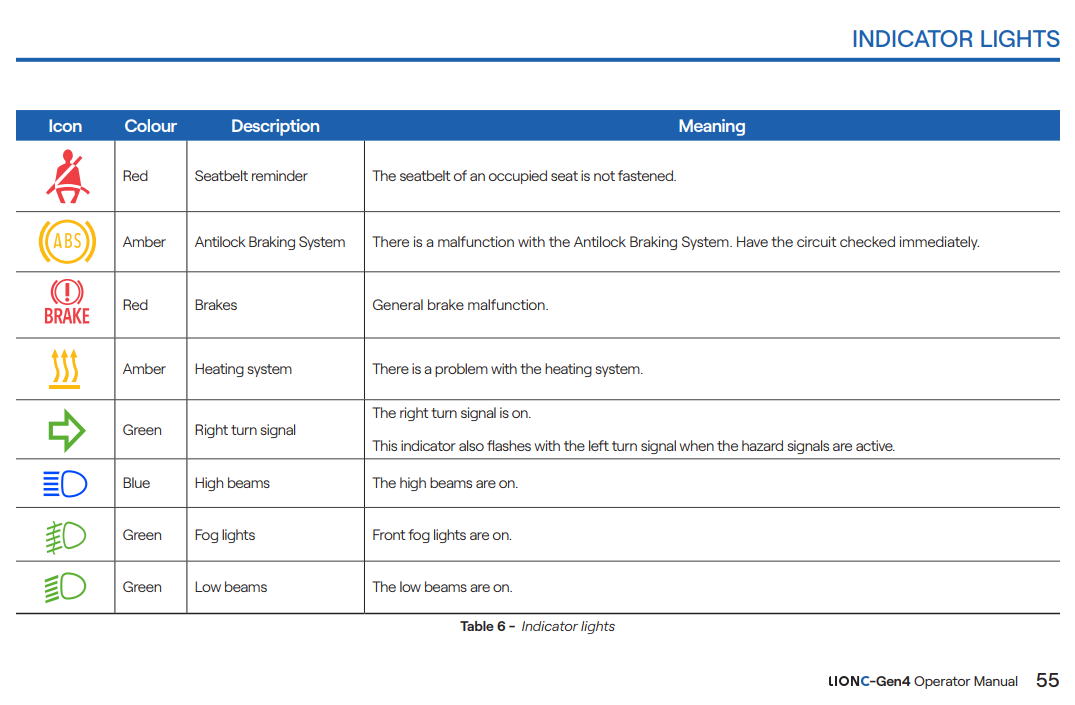

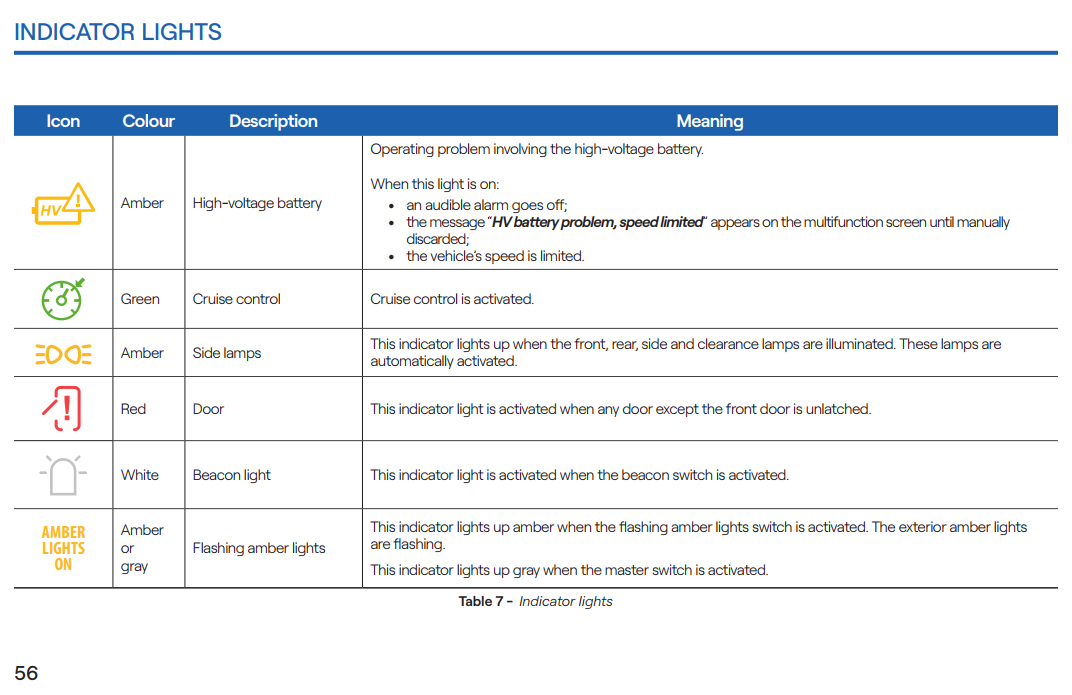

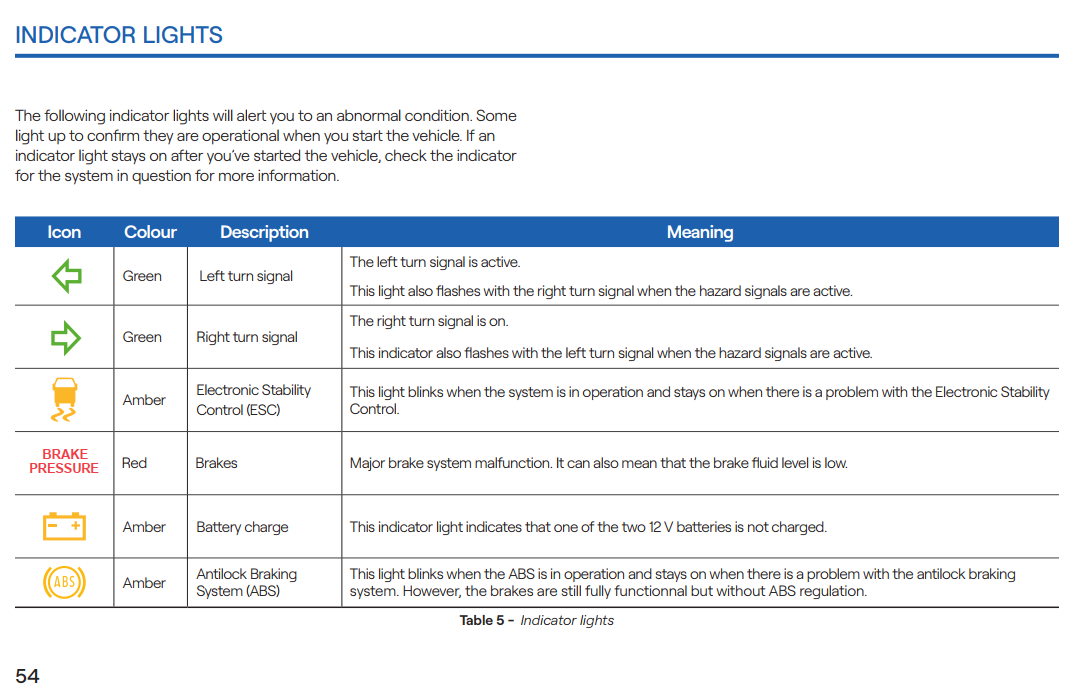

Figure 2 – LionC Gen4 indicator lights
Figure 2 – LionC Gen4 indicator lights
