00-00 How to identify equipment and options installed
#
Braking system type
#
Hydraulic braking system

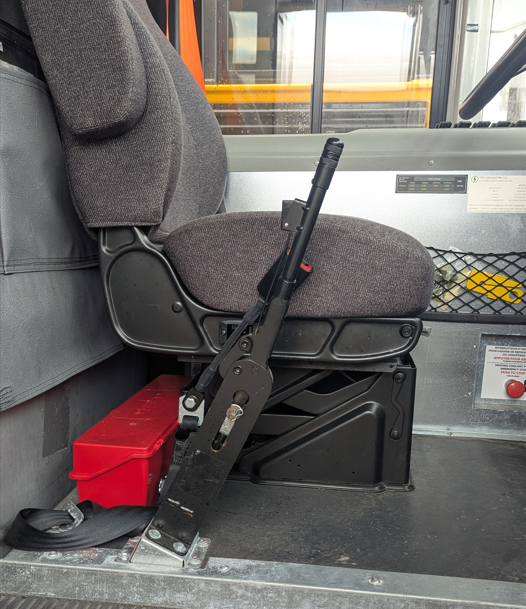

There is a parking brake lever located on the floor, at the right of the operator seat.

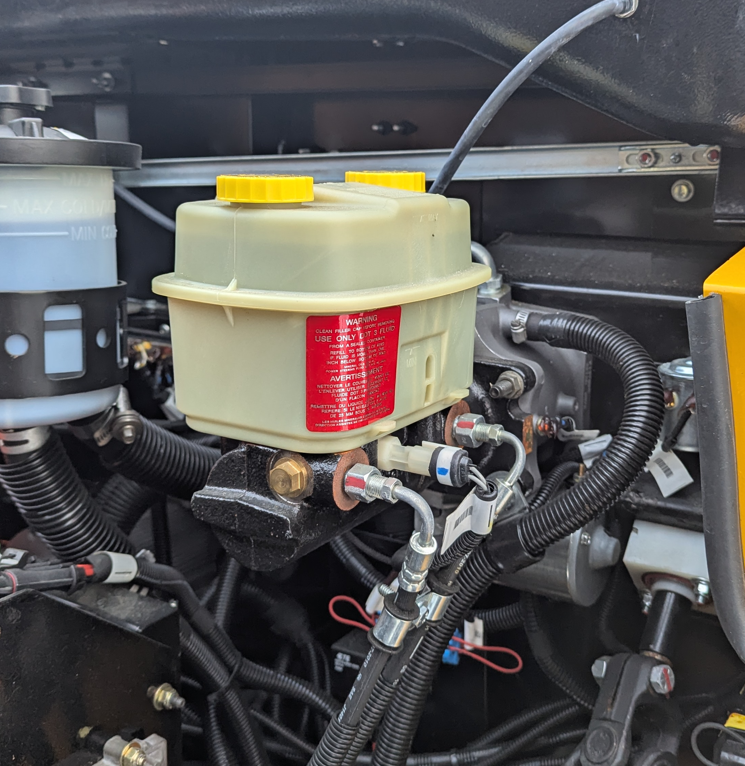

Underhood, there is a standard master cylinder with a plastic brake fluid reservoir mounted on the firewall, near the steering column.
#
Pneumatic braking system

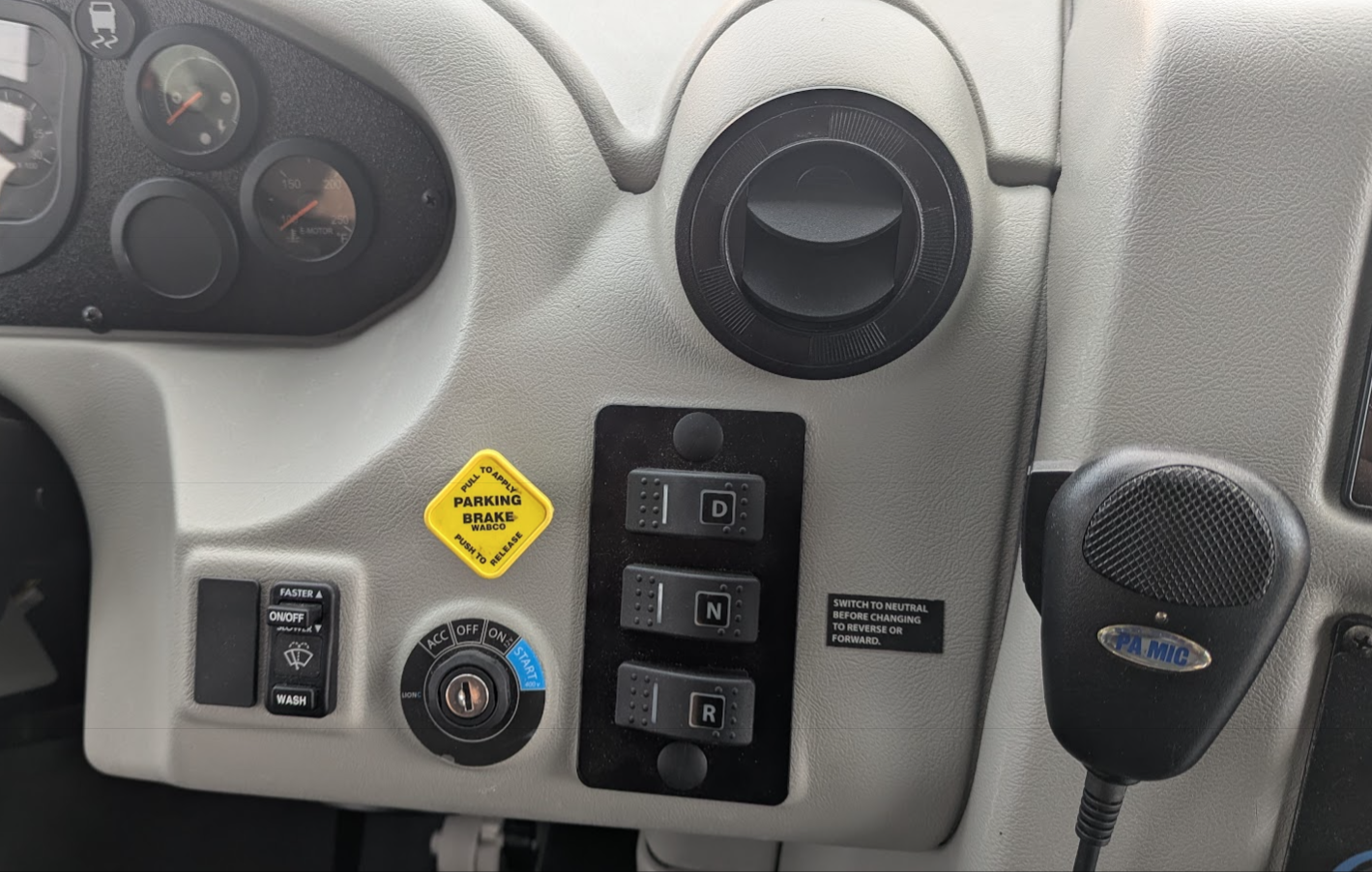

The parking brake is operated by a big yellow knob located on the dashboard.

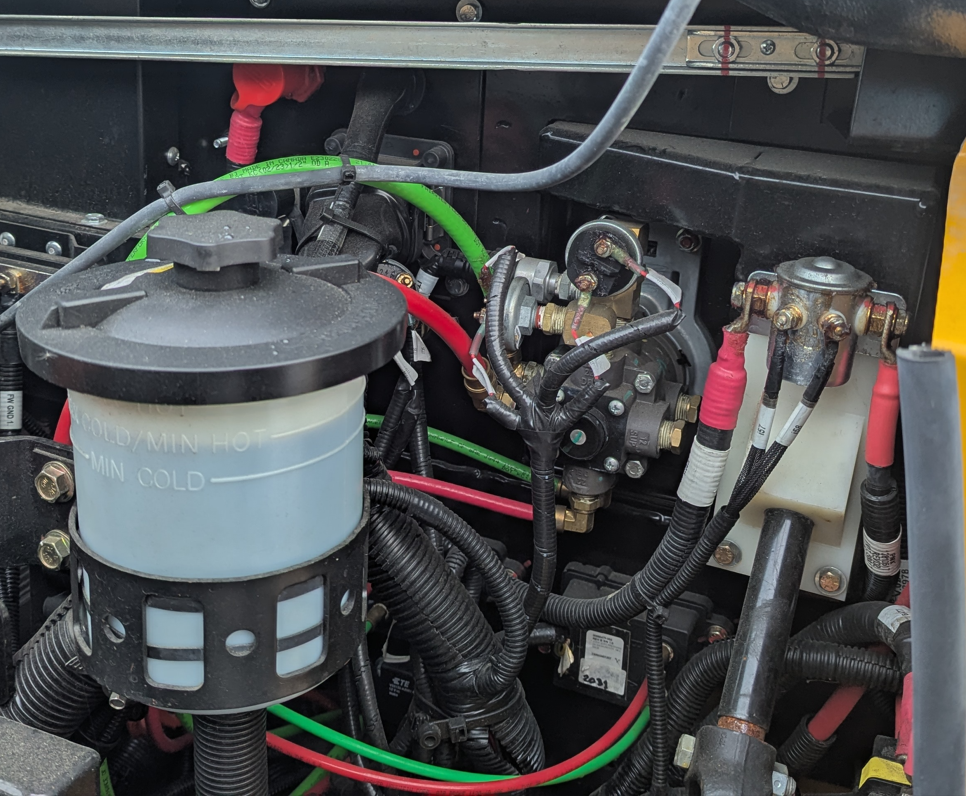

Underhood, there is an air valve with green and red air tubes located on the firewall, near the steering column.
#
Rear suspension type
The front suspension of the LionC is always equipped with leaf springs, even when the rear suspension is pneumatic.
#
Leaf spring rear suspension

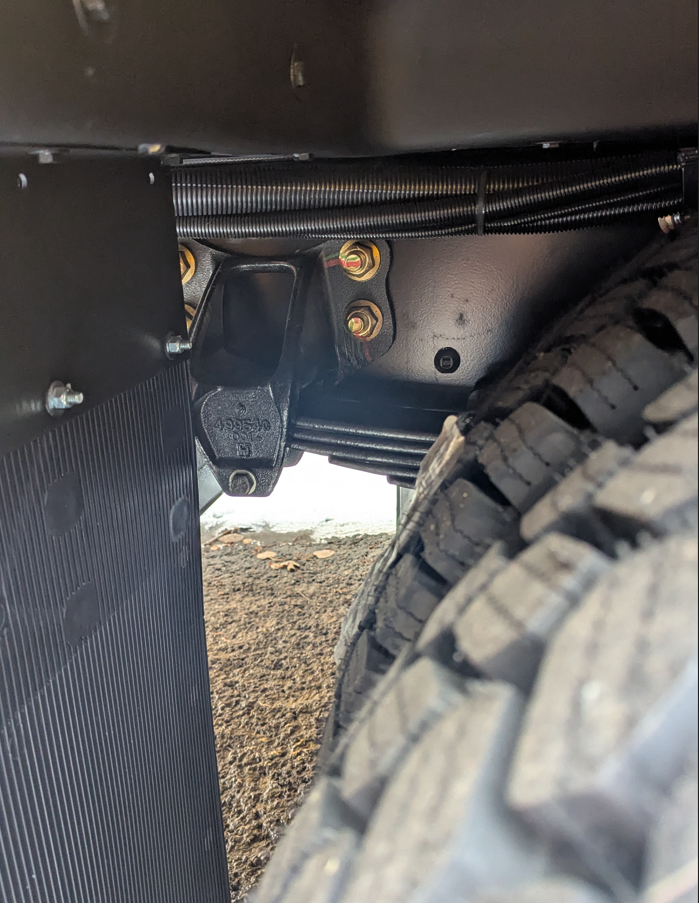

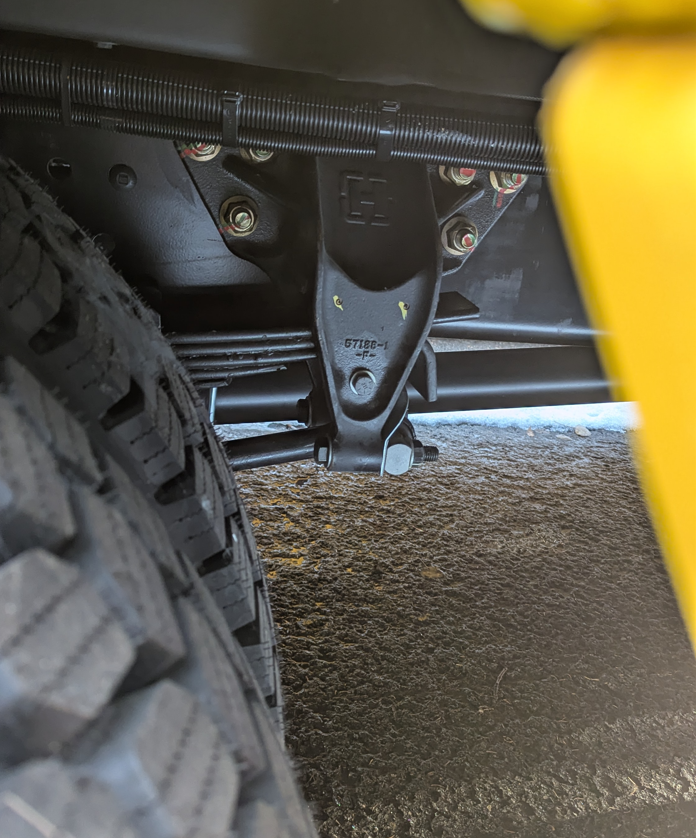

The rear axle is bolted on a thick leaf spring visible behind and in front of the rear wheels.
#
Pneumatic rear suspension

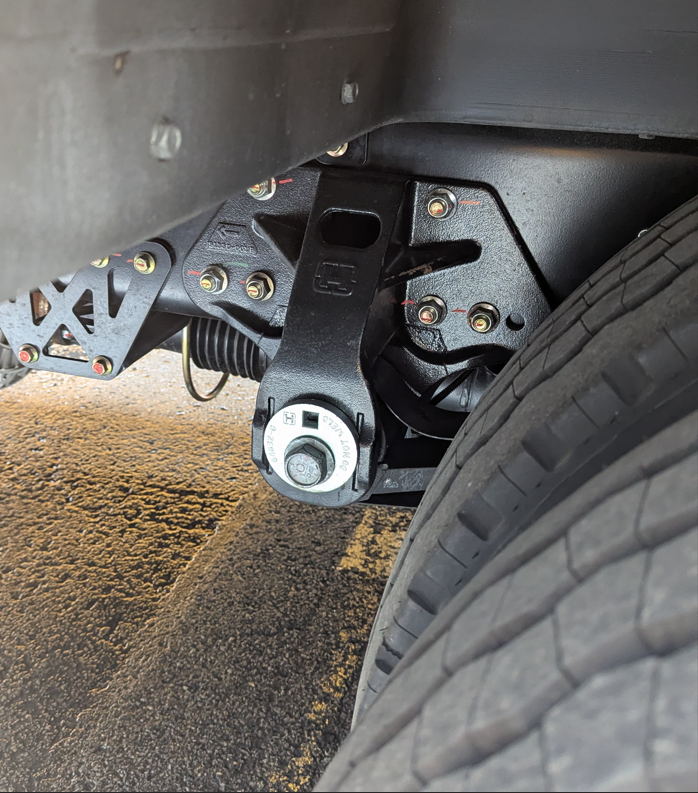

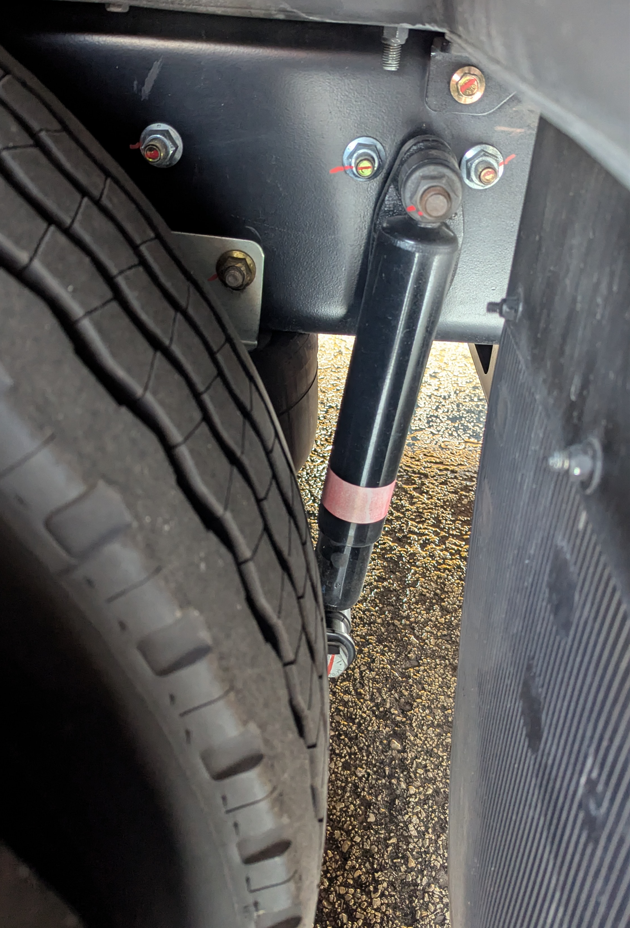

At the front of the rear wheels, the rear axle is located by a trailing arm attached to a mounting bracket equipped with an adjuster. At the back of the rear wheels, the shock absorber bolted to the frame rail is clearly visible.
#
Diesel heater system type
There are two types of diesel heater systems: Spheros (from Valeo) and Proheat (from Dometic).
#
Spheros

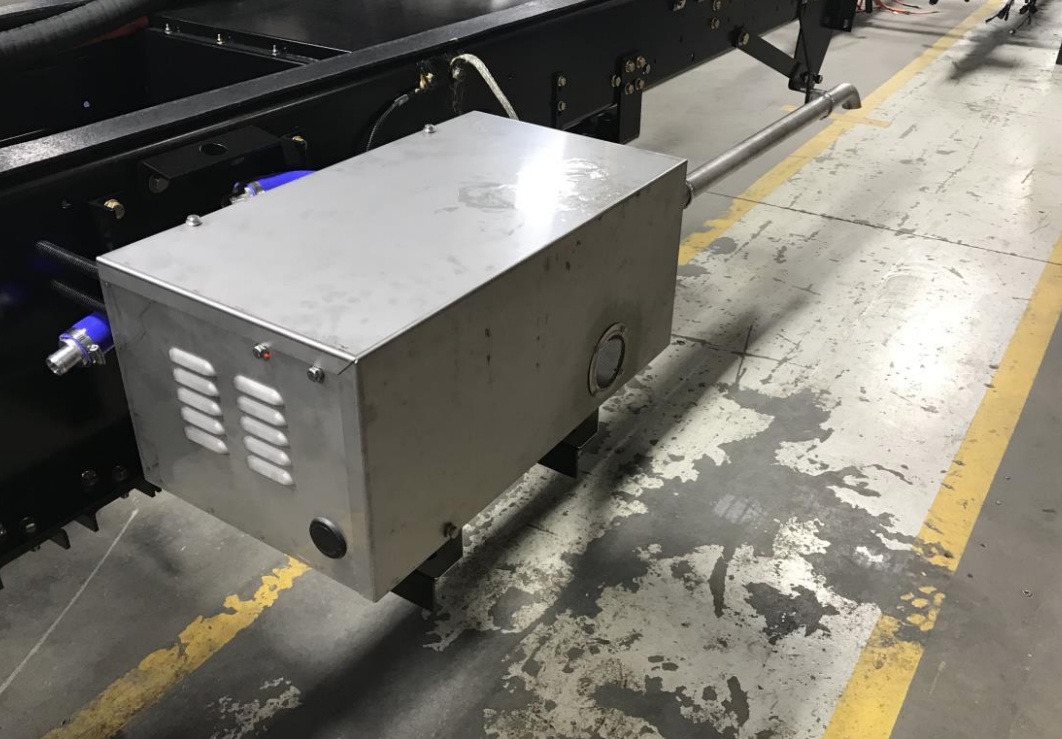

The metallic box containing the Spheros unit is made of stainless steel. It is bolted to the chassis rail, just behind the rear wheels, on the operator side.
#
Proheat

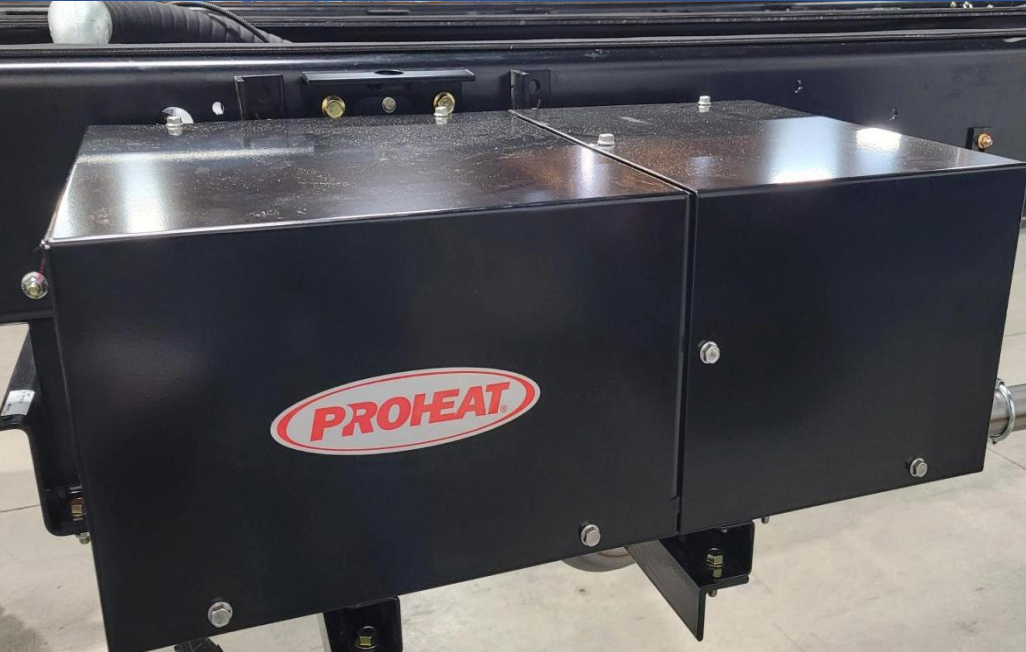

The metallic box containing the Proheat unit is made of black painted steel. It is bolted to the chassis rail, just behind the rear wheels, on the operator side.
