# 12-10 Hydraulic Brake Circuit Inspection

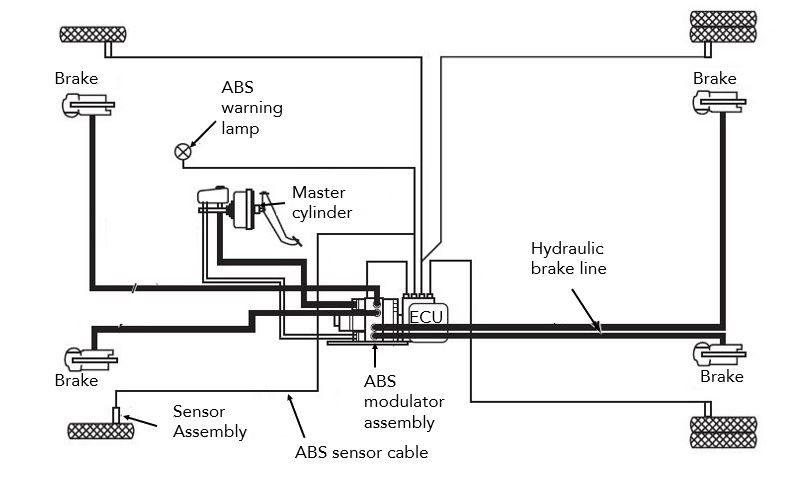

Inspect the general state of the braking system to make sure all the components are in place and properly secured (Figure 1).

Inspect the hydraulic brake line for any sign of friction, leakage, or any other indication of abnormal wear.
Make sure all the sensor assembly of the ABS system is securely in place.

Make sure the ABS sensor cables are properly secure to the Electronic Control Unit (ECU).
